HL10511

Metric external thread 24° internal conical surface weight series

Introduction： High reliability: The hydraulic system can operate stably under high pressure and high load conditions. The design and manufacturing process of the parts ensure their robustness and durability, capable of withstanding considerable pressure and impact, and reducing the possibility of failure. It has fatigue resistance and large displacement compensation capacity, and is widely used in pipeline systems for media such as oil and water
Telephone： 400-100-6819
Email： info@huvlone.com

Service Hotline 400-100-6819

Service Hotline： 400-100-6819

商品名称:HL10511

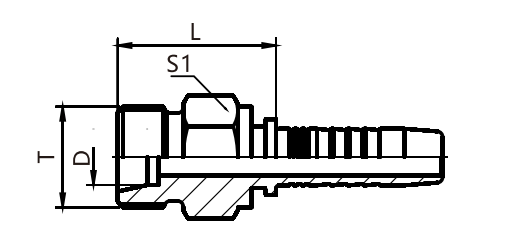

代号 PA RT NO.	螺纹T	软管		管子外径	尺寸
代号 PA RT NO.	THREAD T	公称内径DN	标号DAHLH		L	D	S1
HL10511-14-04	M14X1.5	6	04	6	24	6	14
HL10511-16-04	M16X1.5	6	04	8	26.5	8	17
HL10511-18-04	M18X1.5	6	04	10	26.5	10	19
HL10511-18-06	M18X1.5	10	06	10	27	10	19
HL10511-20-05	M20X1.5	8	05	12	28	12	22
HL10511-20-06	M20X1.5	10	06	12	28	12	22
HL10511-22-06	M22X1.5	10	06	14	28.5	14	24
HL10511-24-08	M24X1.5	13	08	16	32	16	27
HL10511-30-10	M30X2	16	10	20	36	20	32
HL10511-30-12	M30X2	19	12	20	36	20	32
HL10511-36-12	M36X2	19	12	25	40	25	41
HL10511-36-16	M36X2	25	16	25	41	25	41
HL10511-42-16	M42X2	25	16	30	43	30	46
HL10511-52-20	M52X2	32	20	38	48	38	55
注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL10512-XX-XX。
